Quick Deployment Anchor Point
In a rescue situation time is vital. Making the task as efficient and as safe as possible for both the rescue crew and the victim is the top priority.
This project aims to aid the efforts by providing additional anchor points and points of purchase when in tricky situations. Such as in flood rescue, the torrents of water can hamper the rescue crews ability to help the victim in a car. The water will rush past making it hard to maintain grip on a slippery car.
Being able to have equipment to hand at a moments notice can aid rescue operations when those seconds are crucial.
Car Bar Concept 1
Not relevant anymore but worth a show, 2 very early on concepts aimed to bridge the gap across panoramic roof tops on cars after the glass is broken to help the rescue operation. The project has since branched out into wider areas. These were still useful to make as a cad exercise and to push the work forward.
Proposal 1
Product proposal, outlining the uses for the product. The market analysis chart outlines the unique selling points. The user centered design must be a strong driving force with this to make the product as user friendly and efficient to use as possible.

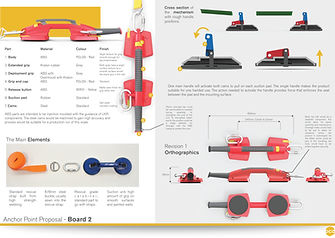

Detailed Look
​
A clearer look at the more resolved concept, looking into the handle geometry and the exterior detials
The First Vision
The first look at the concept proposal. These are used to pitch the idea to prospective clients.
Using the Solidworks Simulation tool to analysis the end of life impact. Below are the 4 main reports generated. These give clients an idea to production costs.
End of life
Report 1
ABS - Asia
Report 2
ABS - Europe
Report 3
Nylon - Asia
Report 4
Nylon - Europe
